Description

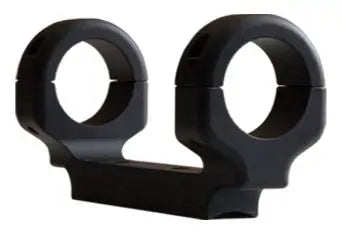

Marlin 1894, 1895, 336, XLR: Will also fit Henry Rifles that are completely flat on top of receiver and are drilled and tapped. Mount fits both left and right hand firearms. Base screws are 8-40 X 1/4? long. Ring screws are 6-40 X 5/8? long. Base screws use a 9/64? Allen wrench and ring screws use a 7/64? Allen wrench. Outside to outside of rings is 4.08?. Standard rings are .63? wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50?, 1.88?, .50?, .37?, .50?. Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used. Height of mount from top of receiver to centerline of scope tube is – medium 1.06?, high 1.19?.
